L3 Managed 24G + 4x1000M SFP Ethernet Switch

Name: L3 Managed 24G 4x1000M SFP Ethernet Switch
Brand: E-link
Price: 1 USD

Brand Name : E-link

Model Number : LNK-L24G4F

Certification : CE, RoHS and FCC

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Operating Temperature : 0℃~60℃

Dimensions : 440x230x44mm

Power : 80W

Contact Now

L3 Managed 24G + 4x1000M SFP Ethernet Switch

Product Advantages

► 24 10/100/1000Base-T Ethernet ports, 4 1G SFP ports

► 56Gbps Backplane bandwidth

► 41.664Mbps Packet forwarding rate

► ARM® Cortex™-A9 Processor

► 16MB Flash memory capacity

► 256MB The memory capacity

► 1.5MB Queue buffer

Overview

LNK-L24G4F Gigabit Ethernet Switch 24+4 is standard third-layer non-blocking switch.

Provide 24x10/100/1000Base-T Ethernet ports, 4x1G SFP ports. Based on high-performance chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange.

Technical Indexes

The product model	24+4 1 Gigabit Ethernet Switch
Basic characteristics
Fixed port	24 10/100/1000M RJ45 Electrical ports,4 1G SFP ports
Backplane bandwidth	56Gbps
Packet forwarding rate	41.664Mpps
Processor	ARM® Cortex™-A9
Chip	BCM
Layer	L3
Flash memory capacity	16MB
The memory capacity	256MB
Queue buffer	1.5MB
Layer3 Configuration	The interface configures : he IPv4 address configuration of the Layer 3 interface ARP configuration : Static ARP add, ARP aging time settings, view system ARP information VRRP configuration ND configuration : Static ND configuration
Physical characteristics
Appearance size	440x230x44mm
Power characteristic	AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power	80W
Indicator lamp	Power indicator, indication of system, connecting / transceiver instructions
Environment humidity / temperature	0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation

Odering Information

Item	Description
LNK-L24G4F	L3 Managed Ethernet Switch: 24x10/100/1000M RJ45 Ports + 4x1G SFP Ports

Wholesale L3 Managed 24G + 4x1000M SFP Ethernet Switch from china suppliers

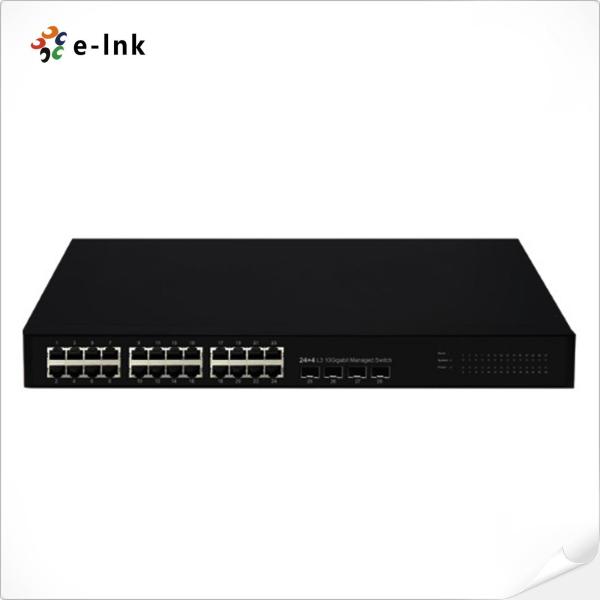

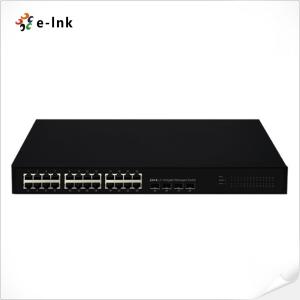

L3 Managed 24G + 4x1000M SFP Ethernet Switch Images
