L3 Managed 48-Port 10/100/1000BASE-T + 4-Port 10G SFP+ Gigabit Ethernet Switch
Product Advantages
► With 176Gbps Backplane capacity
► Hardware routing, the packet forwarding rate of the wire speed layer 2 / 3 switching has reached 130.944Mpps
► Able to be deployed in the Metropolitan Area Network and provide several last kilometer technology
► Provide DOS, DDOS, spoofing and virus defense
► Restrict the maximum number of hosts connected with the port, multi-binding Ethernet interface , increasing bandwidth and system redundancy
Overview
LNK-M48G4F is a standard 3-layer non-blocking switch. Providing 176Gbps switching capacity, supports Layer3/4 ACL functions. Comprehensive security and CPU protect policy to improve fault-tolerant ability. To ensure the stability of the network operation and link load balance. With the modular design, it provides 48*10/100/1000M RJ45 ports, 4*10G SFP+ ports, 1*Console. which offers enough bandwidth for data aggregation and data exchange. And
Technical Indexes
| Product Model | LNK-M48G4F |
| Basic characteristics |
| Fixed port | 48*10/100/1000M RJ45 ports + 4*10G SFP+ ports |
| Console port | 1 |
| Chip | BCM |
| Backplane Capacity | 176Gbps |
| Packet Forwarding Rate | 130.944Mpps |
| Processor | RISC 400MHz |
| Flash memory capacity | 8MB |
| The memory capacity | 128MB |
|  MAC Address Table
| 16K |
| Product characteristics |
|  Layer3 Configuration
| The interface configures : he IPv4 address configuration of the Layer 3 interface ARP configuration : Static ARP add, ARP aging time settings, view system ARP information VRRP configuration ND configuration : Static ND configuration |
| Routing configuration | View routing: Routing information Static configuration: Adds a static route RIP configuration OSPF configuration BGP configuration |
| System maintenance | Configuration file management Save configuration : Configuration file view, upload, download Reboot the device reset Online upgrade |
| Physical characteristics |
| Appearance size (LxWxH) | 442mm × 285mm × 44mm |
| Power characteristic | AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup |
| Power | 80W |
| Indicator lamp | Power indicator, indication of system, connecting / transceiver instructions |
| Environment humidity / temperature | 0-50 ℃ operation,-40-70 ℃ preservation, 0-90% no condensation |
Ordering Information
| Item | Description |
| LNK-M48G4F | L3 Managed Ethernet Switch: 48x10/100/1000M RJ45 Ports + 4x10G SFP+ Ports |
|
|

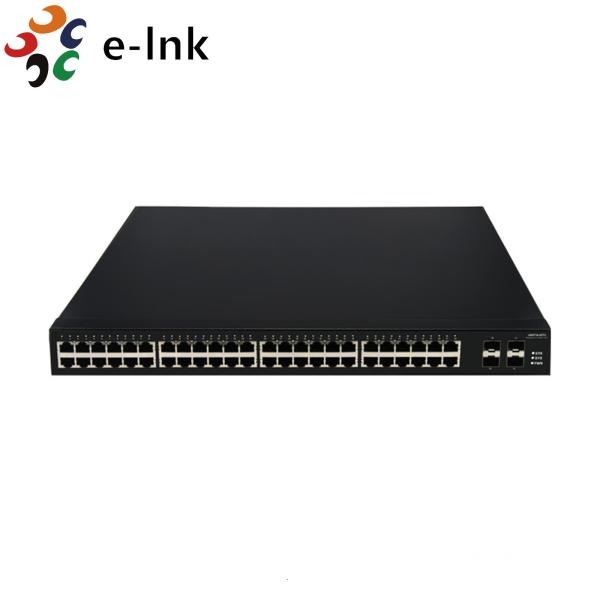

L3 Managed 48-Port 10/100/1000BASE-T + 4-Port 10G SFP+ Gigabit Ethernet Switch Images
|
