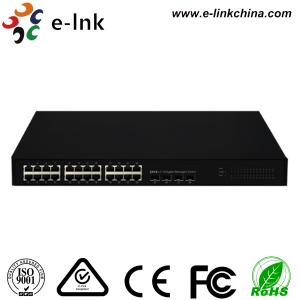

| Model | LNK-M24G4F: L3 24+4 10Gigabit SFP+ Ethernet Switch |
| Basic characteristics |
| Fixed port | 24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports |
| Backplane bandwidth | 128Gbps |
| Packet forwarding rate | 95.232Mbps |
| Processor | RISC 400MHz |
| Flash memory capacity | 8MB |
| The memory capacity | 128MB |
| Address table | 16K |
|  Product characteristics
|
| Spanning tree | Support STP, RSTP, MSTP
Support PVST/PVST+ |
| Flow control | Based on a standard IEEE 802.3x flow control
Using IEEE 802.1Qbb priority flow control
Support CAR function |
| Broadcast control | Restraining broadcast storm, stop sending so long as reaching a critical point |
| multicast control | IGMP Snooping multicast message automatic monitoring |
| multicast routing | IGMP v1/v2/v3, MLDv2
PIM-SM, OLINK&PIM-DM
DVMRP (Distance Vector Multicast Routing Protocol)
GMRP (multicast dynamic registration protocol) |
| Port binding | Each group of a maximum of 8, while support 128 group
LACP dynamic or static polymerization |
| Port mirroring | Support based on flow classification mirroring and port mirroring |
| Stacked | Stacked 16 hard, soft stacking 32
Using clustering techniques, with a unified centralized management of IP address to do address resource saving |
| Routing management | Static routing
RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4, ISIS, BGP
Anti virus intelligent routing function |
| Strategy routing | Support based on IP strategy routing |
| The proxy function | Support Proxy ARP, DNS Proxy |
| Redundancy backup | Support for VRRP, HSRP Hot Standby Router Protocol |
| Characteristics of DHCP | DHCP Server, DHCP Client and support DHCP relay |
| Function of NAT | Support the static or dynamic NAT address translation function |
| Network management | SNMP v1/v2/v3
RMON (1,2,3,9 group)
Telnet
WEB interface
Support for cluster management
Support SSH
Support for PDP (compatible with Cisco CDP.)
To support the fan, temperature, system log, hierarchical alarm |
| Physical characteristics |
| Appearance size | 440x230x44(mm) |
| Power characteristic | AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup |
| Power | 80W |
| Indicator lamp | Power indicator, indication of system, connecting / transceiver instructions |
| Environment humidity / temperature | 0-50 ℃ operation, -40-70 ℃ preservation, 0-90% no condensation |
