Mini RS232 to Wifi Adapter

Mini RS232 to Wifi Adapter

Product Advantages

• Wifi Connection – The RS232 to wifi converter can connect the PC through wifi, no need wire connection. Wireless connection is more convenient and safe, also save your time.
• Telnet Protocol – The RS232 Wifi adapter based on telnet protocol, can operate with CAD of Windows System and software that support telnet such as Xshell4.
• Ultra Small Size – The Wifi-RS232 adapter only 2.4x1.38x0.43in in size, easy to carry with you.
• Plug&Play – The RS232 Wireless extender is transparent transmission, standard DB9 interface, no need drive. Max baud rate 921600.
• Type-C 5V Input – The Wifi RS232 Server come with USB type-C cable, 5V DC input. You can power it with PC, laptop, power bank, power adapter etc.

Technical Indexes

• Support 802.11 b/g/n wireless standard
• Wifi Power:802.11b 266mA, 802.1111g 198mA; Receive:106mA
• Support STA/AP mode
• Receive sensitivity: 802.11b: -89dBm, 802.11g: -81dBm, 802.11n: -71dBm
• Transmit Distance: 165Ft (Open field), Any barrier will influence the distance.
• RS232 baud rate: Max 921600 (Default: 115200)
• Compatible with desktop computer, digital machine tools, PDA, bar code and other standard DB9 serial devices
• Power Input: DC 5V
• Mini Size: 2.4x1.38x0.43in (61 x 35 x 11 mm)

Overview

The LNK-RS232W RS232 to Wifi converter is designed to config/testing rs232 device more convenient and quick. It can extender rs232 signal through WIFI, save the trouble of connecting wire. Small size design, easy to carry.

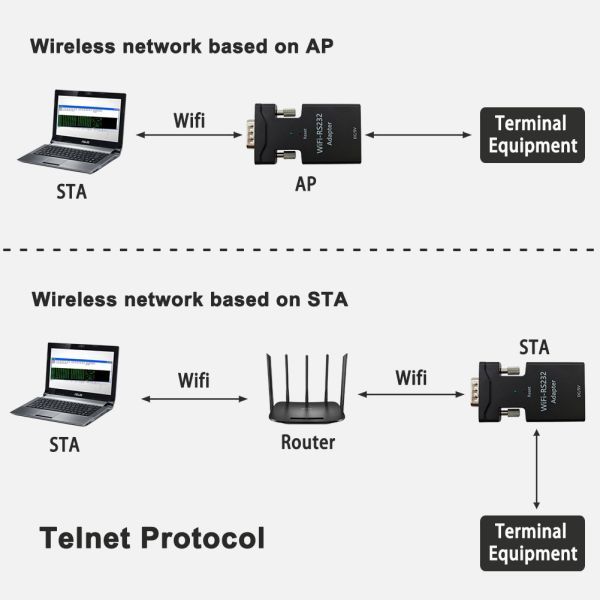

Application

WIFI to RS232 Adapter

Mini RS232 to Wifi Adapter Images
