L2+ 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch
Advantage
► 16-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function
► 2-Port 100/1000BASE-X mini-GBIC/SFP
► RJ45 console interface for basic management and setup
► Web smart management for easy application.
► Bandwidth management based on port input and output
► SNMP V1/V2/V3 management
► Support loop protection, automatic recovery
Overview
TS-M316G-2SFP product is a Managed Ethernet switch which provides 16 port 10/100/1000Base-TX
and 2x1000Base-X SFP port. This TS-M316G-2SFP 16 ports WEB Smart Gigabit Switches fill the gap
between unmanaged and fully managed switches. It is designed for growing businesses that want control
over their network without the cost and complexity of a full Layer 2 management implementation.
Technical Indexes
| Physical Port |
| RJ45 port and speed | 16x10/100/1000Base-TX |
| Fiber port and speed | 2x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Parameters |
| Ethernet standards | IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol |
| Packet buffer | 4Mbits |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs
Backplane bandwidth: 56Gbps |
| LED Indicator |
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber | Link/Act: connect-always; Data exchange-twinkle |
| Power Information |
| Power | Built-in power AC 100~240V 50/60Hz |
| Physical Property |
| Protection grade | IP30 |
| Dimensions | 440mm x 190mm x 44.5mm (L x W x H) |
| Installation mode | Rack Mounting |
| Weight | 3000g |
| Working Environment |
| Operating Temperature | 0℃~55℃ |
| Storage Temperature | -40℃~75℃ |
Application
Ordering Information
| Model | Description |
| TS-M316G-2SFP | L2+ 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch |
| Mounting Options | ► Desktop or Rack Mounting Installation |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
|
|

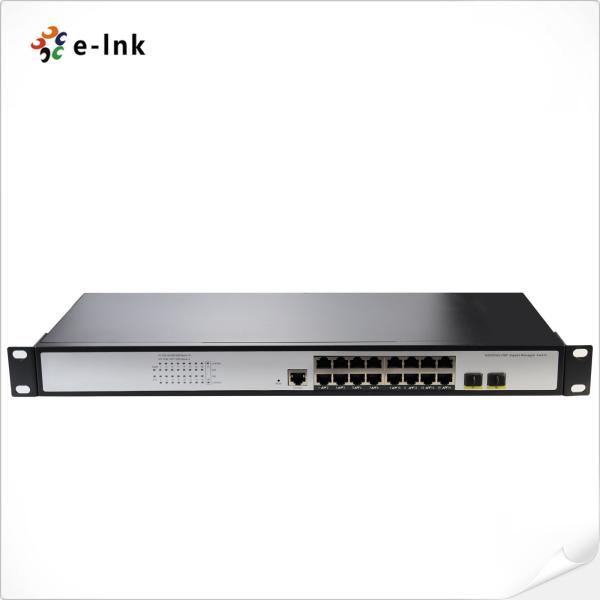

L2+ 16-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch Images
|
