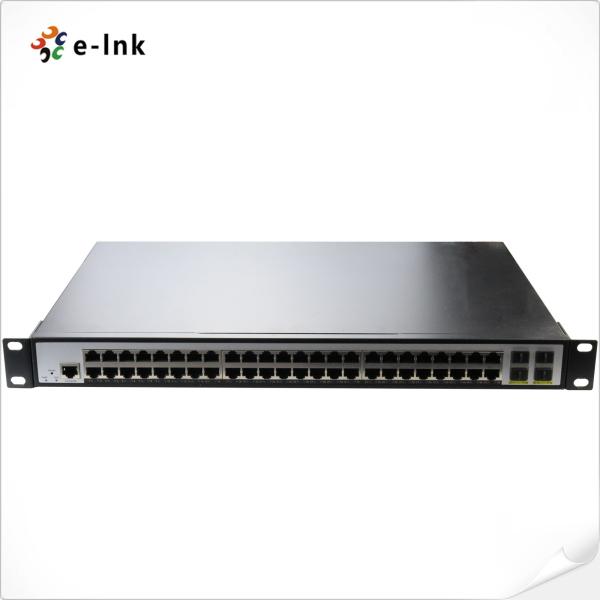

L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch

Name: L2 48Port 101001000T 4Port 1001000X SFP Managed Ethernet Switch
Brand: E-link
Price: 1 USD

Wholesale L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch from china suppliers

Brand Name : E-link

Model Number : TS-M348G-4SFP

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 5-12working days

Packaging Details : standard export package

Warranty : 1 year

Operation Temperature : -10℃~60℃

Weight : 5500g

Input : AC 100-240V, 50/60Hz

Max Voltage Range : AC 90～264V；47/63Hz

Number Of Ports : 8

Contact Now

L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch

Advantage

► 48-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function

► 4-Port 100/1000BASE-X mini-GBIC/SFP

► RJ45 console interface for basic management and setup

► Web smart management for easy application.

► Bandwidth management based on port input and output

► SNMP V1/V2/V3 management

Overview

TS-M348G-4SFP product is a Managed Ethernet switch which provides 48 port 10/100/1000Base-T

and 4x100/1000Base-X SFP port. This TS-M348G-4SFP 48 ports WEB Smart Gigabit Switches fill the

gap between unmanaged and fully managed switches. It is designed for growing businesses that want

control over their network without the cost and complexity of a full Layer 2 management implementation.


L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch

Technical Indexes

Power Information
Power	Built-in power AC 100~240V 50/60Hz MAX Power 500W
Physical Property
Protection grade	IP30
Dimensions	440mm x 230mm x 45mm (L x W x H)
Installation mode	Rack Mounting
Weight	3600g
Working Environment
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~75℃
Warranty
MTBF	200,000 hours
Defects Liability Period	1 year warranty, lifetime technical support
Certification Standard
EMI	FCC Part15 Subpart B Class A, EN 55022 Class A
EMS	EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Collision	IEC60068-2-27
Drop	IEC60068-2-32
Vibration	IEC60068-2-6
Safety grade	EN60950-1

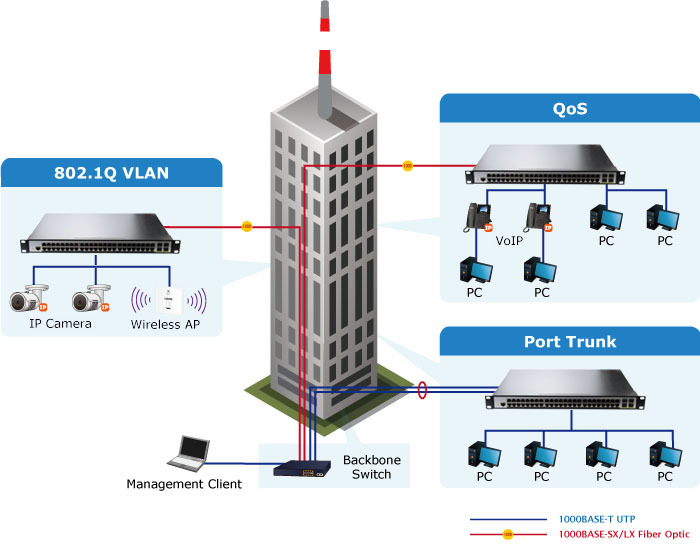

Application

L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch

Ordering Information

Model	Description
LNK-M348G-4SFP	L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.

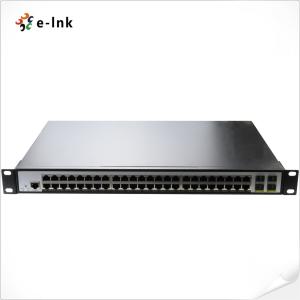

L2+ 48-Port 10/100/1000T + 4-Port 100/1000X SFP Managed Ethernet Switch Images
