Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch

Brand Name : E-link

Model Number : LNK-FS242

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Operating Temperature : -10°C to 60°C

Dimension : 485 x 235 x 45 mm

Weight : 2560g

Casing : Metal Case, IP40 protection

Contact Now

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch


Product Advantages

► 24x100Base-FX SFP Ports + 2x10/100/1000Base-TX Ports

► Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X at TX

► Supports external 100BASE SFP hot swap

► Supports 8K MAC address

► 1M bits frame buffer memory

► 19-inch 1U Rack

► Operating Temperature: -10°C to 60°C

► 110~240VAC Power Inputs

► Aluminum Case

► Lightning Protection Design

► 3-Year Warranty

Technical Indexes


Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE802.3u 100BASE-FX

IEEE802.3ab 1000BASE-T

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Processing Type:

Store-and-Forward

Max Packet Length:

1522 Bytes

Address Table Size:

8K MAC Addresses

RJ45 Port

2*10/100/1000Base-T(X)

Optical Port:

24*100Base-X SFP

Environmental

Operating Temperature:

-10°C to 60°C

Storage Temperature:

-40°C to 85°C

Relative Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

110~220VAC

Power Consumption:

25W Max. ( Off-load)

40W Max. (Full load)

Dimensions (WxDxH):

485 x 235 x 45 mm

Weight:

2560g

Casing:

Metal Case, IP40 protection

Regulatory Approvals

ISO9001

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500V

ESD: 4KV

Overview

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Fiber Switch


Orderinng Information


Item

Description

LNK-FS242

24SFP + 2xRJ45 Management Gigabit Fiber Switch



Wholesale Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch from china suppliers

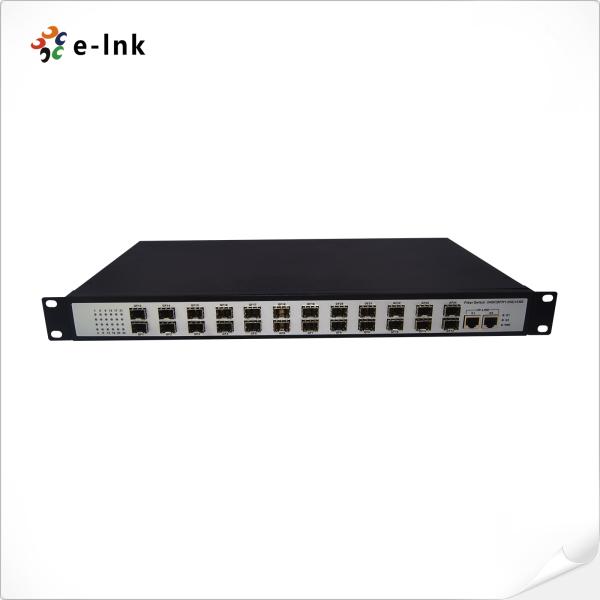

Unmanaged 24-port 100Base-FX SFP + 2-10/100/1000-TX Switch Images
