L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch

Name: L2 24Port 101001000T 4Port Gigabit TPSFP Combo Managed Ethernet Switch
Brand: E-link
Price: 1 USD

Wholesale L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch from china suppliers

Brand Name : E-link

Model Number : TS-M324G-4G4SFP

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 5-12working days

Packaging Details : standard export package

Overload Protection : Yes

Protection Grade : IP30

Mode : 10/100Mbps

Redundant Network : STP, RSTP, EAPS/ERPS

Transmission Distance : 0-120 km

Packet Forwarding Rate : 654Mbps

Copper Ports : 24 Port 10/100/1000T RJ45

Contact Now

L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch

Advantage

► 24-Port 10/100/1000Base-T RJ45

► 4-Port 10/100/1000Mbps TP and SFP shared combo interfaces, supporting 100/1000Mbps dual mode

► RJ45 console interface for basic management and setup

► Web smart management for easy application.

► Bandwidth management based on port input and output

► SNMP V1/V2/V3 management

Overview

TS-M324G-4G4SFP product is a Managed Ethernet switch which provides 24 port 10/100/1000Base-TX

and 4x Gigabit TP/SFP combo ports. This TS-M324G-4G4SFP 24 ports WEB Smart Gigabit Switches fill

the gap between unmanaged and fully managed switches. It is designed for growing businesses that want

control over their network without the cost and complexity of a full Layer 2 management implementation.


Technical Indexes

Physical Port
RJ45 port and speed	24x10/100/1000Base-TX
Fiber port and speed	4xGigabit TP/SFP Combo
Parameters
Ethernet standards	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol
Packet buffer	4Mbits
MAC address table	8K
Transmission mode	Store and Forward (full/half duplex mode)
Exchange property	Delay time: < 7μs Backplane bandwidth: 56Gbps
LED Indicator
Power	Connect-always
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle
Power Information
Power	Built-in power AC 100~240V 50/60Hz
Physical Property
Protection grade	IP30
Dimensions	440mm x 290mm x 45mm (L x W x H)
Installation mode	Rack Mounting
Weight	3600g
Working Environment
Operating Temperature	0℃~55℃
Storage Temperature	-40℃~75℃
Warranty
MTBF	200,000 hours
Defects Liability Period	1 year warranty, lifetime technical support

Application

L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch

Ordering Information

Model	Description
TS-M324G-4G4SFP	L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.

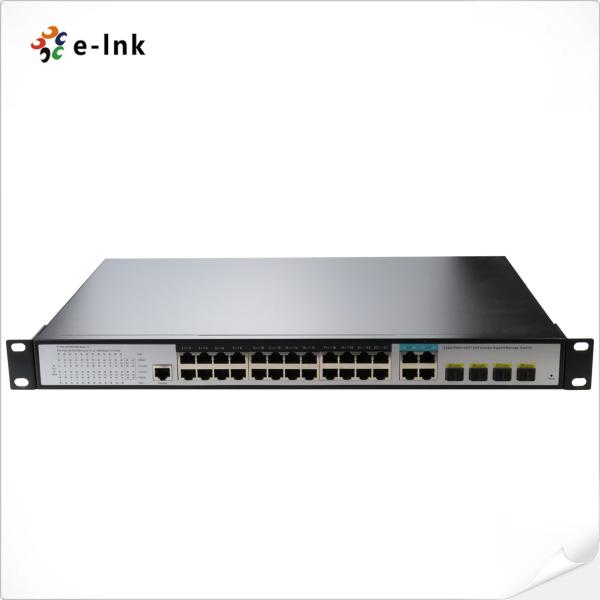

L2+ 24-Port 10/100/1000T + 4-Port Gigabit TP/SFP Combo Managed Ethernet Switch Images
