L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

Name: L3 24Port 101001000T 4Port 10G SFP Managed Ethernet Switch
Brand: E-link
Price: 1 USD

Wholesale L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch from china suppliers

Brand Name : E-link

Model Number : TS-M324G-4XSFP

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 5-12working days

Packaging Details : standard export package

Ports : ≤ 8,24,≥ 48,16,52

Switch capacity : 32Gbps,1.6Gbps,53G,1.6G,64Gbps

Products status : Stock,Used

Transmission rate : 10/100/1000Mbps,10/100Mbps,10/100/1000M / 10G

Communication mode : Full-Duplex & Half-Duplex

Warranty : 1 year,One Year,3 Years,2 years

Contact Now

L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

Advantage

► 24-Port 10/100/1000Base-T RJ45

► 4-Port 10G SFP+

► RJ45 console interface for basic management and setup

► Web smart management for easy application.

► Bandwidth management based on port input and output

► SNMP V1/V2/V3 management

Overview

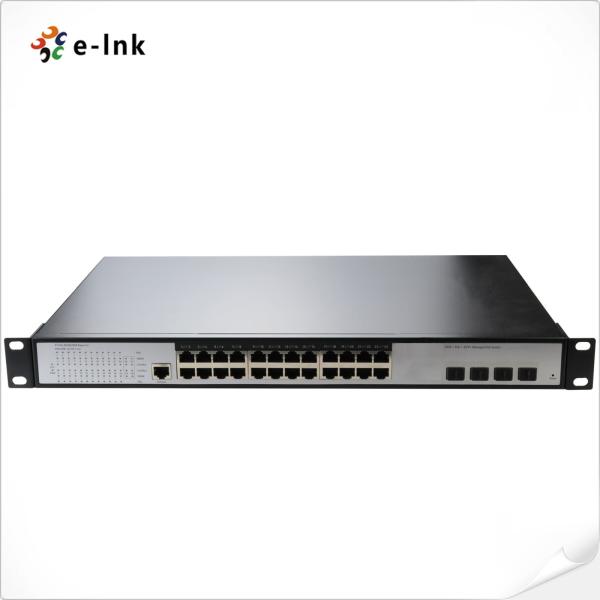

E-link TS-M324G-4XSFP L3 Managed Ethernet Switch, featuring 24 10/100/1000BASE-T

and 4 10G SFP+ ports in a 1U case. With 10Gbps uplink, the TS-M324G-4XSFP can handle

extremely large amounts of data in a secure topology linking to an industrial backbone or

high-capacity servers. It provides user-friendly yet advanced IPv6/IPv4 management interfaces,

abundant L2/L4 switching functions, Layer 3 dynamic routing capability, and advanced ERPS

Ring technology to improve the rapid self-recovery capability for controlling the outdoor IP

surveillance and wireless network applications. It is able to operate reliably, stably and quietly.


L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

Technical Indexes

LED Indicator
Power	Connect-always
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle
Power Information
Power	Built-in power AC 100~240V 50/60Hz
Physical Property
Protection grade	IP30
Dimensions	440mm x 290mm x 45mm (L x W x H)
Installation mode	Rack Mounting
Weight	3600g
Working Environment
Operating Temperature	0℃~50℃
Storage Temperature	-40℃~75℃
Warranty
MTBF	200,000 hours
Defects Liability Period	1 year warranty, lifetime technical support

Application

L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

Ordering Information

Model	Description
TS-M324G-4XSFP	L3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch
Mounting Options	► Desktop or Rack Mounting Installation
SFP+ Options	► SFP+ option. Please select your SFP on our SFP Options Page
SFP+ Options	► SFP+ module is to be purchased separately.
