L2+ 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch

Name: L2 8Port 101001000T 2Port 1001000X SFP Managed Ethernet Switch
Brand: E-link
Price: 1 USD

Wholesale L2+ 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch from china suppliers

Brand Name : E-link

Model Number : TS-M308G-2SFP

Certification : ISO9001, CE, FCC, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiated

Payment Terms : T/T,PayPal

Supply Ability : 1000pcs/mouth

Delivery Time : 5-12working days

Packaging Details : standard export package

Copper Ports : 8 Port 10/100/1000M Copper RJ45

Address Table : 16K

Uplink Port : 8*100G QSFP28

Power : 100~240V AC

Mounting Options : DIN-Rail / Wall-mount

Connector : 8 x RJ45

Contact Now

L2+ 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch

Advantage

► 8-Port 10/100/1000BASE-T RJ45 copper with IEEE 802.3at/af Power over Ethernet Injector function

► 2-Port 100/1000BASE-X mini-GBIC/SFP

► RJ45 console interface for basic management and setup

► Bandwidth management based on port input and output

► SNMP V1/V2/V3 management

► Support loop protection, automatic recovery

Overview

TS-M308G-2SFP product is a Managed Ethernet switch which provides 8 port 10/100/1000Base-T

and 2x100/1000Base-X SFP port. This TS-M308G-2SFP 8 ports WEB Smart Gigabit Switches fill the

gap between unmanaged and fully managed switches. It is designed for growing businesses that want

control over their network without the cost and complexity of a full Layer 2 management implementation.


L2+ 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch

Technical Indexes

Physical Port
RJ45 port and speed	8x10/100/1000Base-TX
Fiber port and speed	2x100/1000Base-FX SFP (Dual Mode, Auto Detection)
Parameters
Ethernet standards	IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X IEEE 802.3ad IEEE 802.3q, IEEE 802.3q/p IEEE 802.1w, IEEE 802.1d, IEEE 802.1S STP (Spanning Tree Protocol) RSTP/MSTP (Rapid Spanning Tree Protocol) ERPS ring network protocol
Packet buffer	4Mbits
MAC address table	8K
Transmission mode	Store and Forward (full/half duplex mode)
Exchange property	Delay time: < 7μs Backplane bandwidth: 20Gbps
LED Indicator
Power	Connect-always
RJ45	Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber	Link/Act: connect-always; Data exchange-twinkle
Power Information
Power	Built-in power AC 100~240V 50/60Hz
Physical Property
Protection grade	IP30
Dimensions	280mm x 180mm x 44.5mm (L x W x H)
Installation mode	Rack Mounting
Weight	2000g
Working Environment
Operating Temperature	0℃~55℃
Storage Temperature	-40℃~75℃

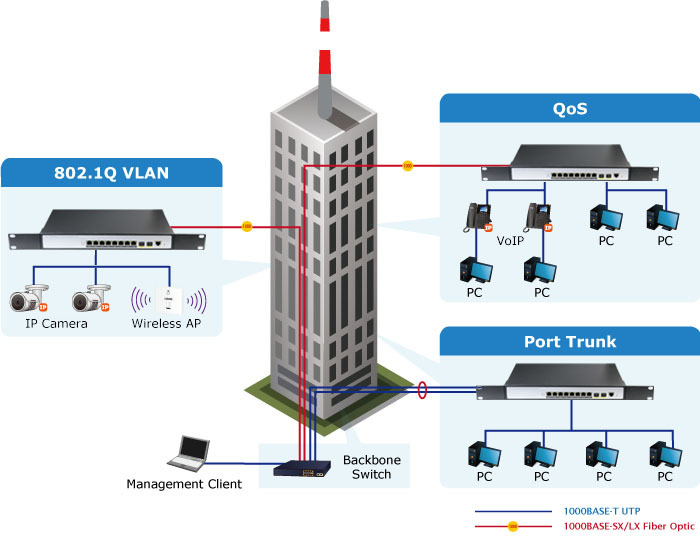

Application

L2+ 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch

Ordering Information

Model	Description
TS-M308G-2SFP	Managed 8-Port 10/100/1000Base-T + 2-Port 100/1000Base-X SFP Ethernet Switch
Mounting Options	► Desktop or Rack Mounting Installation
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.

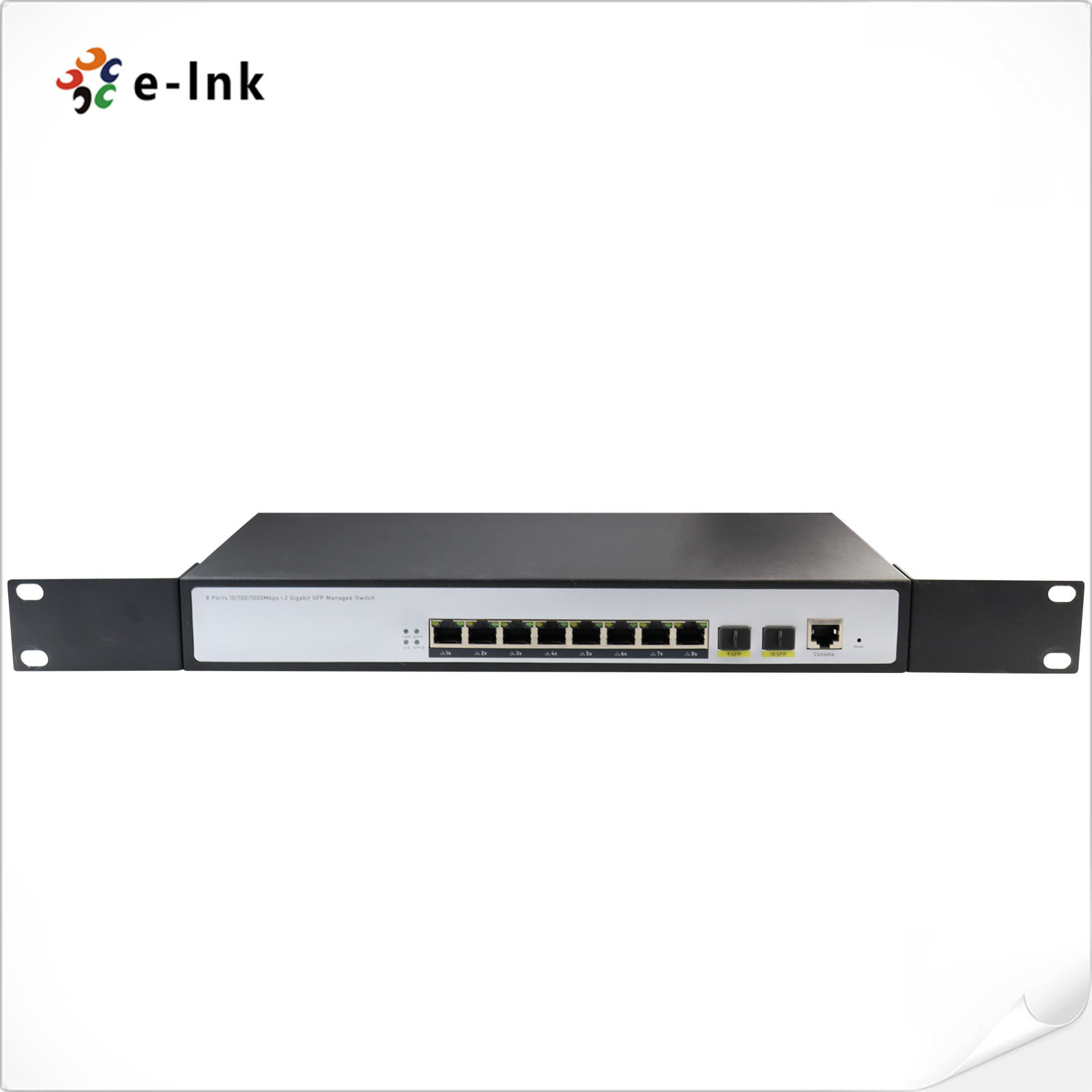

L2+ 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Ethernet Switch Images
