10/100/1000M Media Converter 4-TX + 2-FX(SC) Port Fiber Switch

Name: 101001000M Media Converter 4TX 2FXSC Port Fiber Switch
Brand: E-link
Price: 1 USD

Wholesale 10/100/1000M Media Converter 4-TX + 2-FX(SC) Port Fiber Switch from china suppliers

Brand Name : E-link

Model Number : LNK-2400G

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Wavelength : 850nm/1310nm/1550nm

Operating Temperature : -10~55ºC

Power supply : DC5V 3A (external)

Conversion means : Media conversion, store-and-forward

Contact Now

10/100/1000M Media Converter 4-TX + 2-FX(SC) Port Fiber Switch

Product Advantages

· Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)

· Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

· 1000M Fiber port supports 1000M and Full Duplex mode.

· Supports flow control and broadcast storm protection.

· Supports VLAN and QoS.

· Supports max 10K bytes frame.

· Low power consume (4W), low heat, and good reliability.

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps
Standard	IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX
Wavelength	850nm/1310nm/1550nm
Transmission distance	Fiber Optic: Multimode Fiber:50/125,62.5/125μm Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km) Category-5 twisted pairs: 100m
Port	4RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2SC socket
Conversion means	Media conversion, store-and-forward
Flow control	Full duplex: flow control; half duplex: back pressure
Error rate	<10^-9
MTBF	100,000 hours
MAC address table	1K
Power supply	DC5V 3A (external)
Power consumption	4W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Overview

LNK-2400G 4 port Gigabit Ethernet Switch with four 10/100/1000M UTP ports and two 1000M SC sockets, which converting the 2 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.

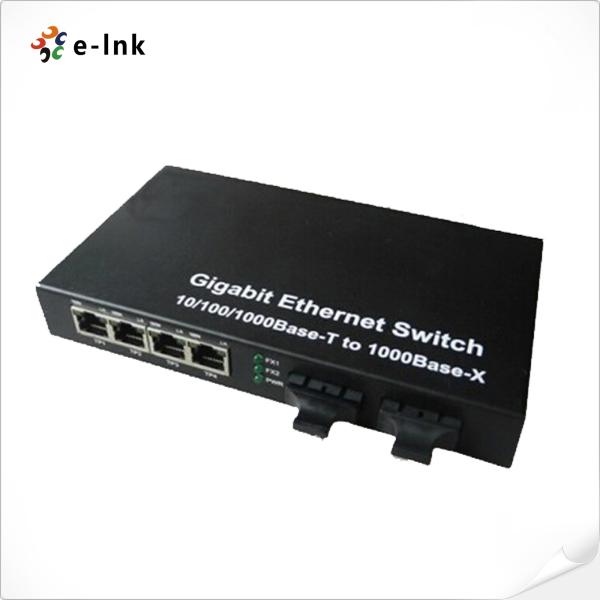

10/100/1000M Media Converter 4-TX + 2-FX(SC) Port Fiber Switch Images
