1x10/100BASE-T to 2x100BASE-X SFP Media Converter with Built-in Power Supply

Name: 1x10100BASET to 2x100BASEX SFP Media Converter with Builtin Power Supply
Brand: E-link
Price: 1 USD

Wholesale 1x10/100BASE-T to 2x100BASE-X SFP Media Converter with Built-in Power Supply from china suppliers

Brand Name : E-link

Model Number : LNK-2100-SFP

Certification : CE, RoHS and FCC

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Dimension : 71 x 94 x 26 mm

Weight : 200g

Operating Temperature : 0 ˚C ~ +55 ˚C

Power Consumption / Dissipation : <3W

Power Requirements : AC 100-240V 50/60Hz 0.15A Max

Contact Now

1x10/100BASE-T to 2x100BASE-X SFP Media Converter with Built-in Power Supply

Product Advantages

· 1-port 10/100BASE-T RJ45 with auto MDI / MDI-X function

· 2-port 100Base-FX SFP slots

· Transfers data from 10/100Base-T copper to fiber interfaces

· Supports auto-negotiation and 10/100Mbps half / full duplex

· 0°C to 50°C operating temperature range

· Supporting low-time lag transmission

· Built-in Power Supply

· Extremely low power consumption (less than 3W), reliable and stable performance

Technical Indexes

Hardware Specifications
Copper Interface	1 x 10/100BASE-T RJ45 TP
Copper Interface	Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface	2 x 100BASE-FX SFP interface.
LED	■ P1: 10/100M TP
	■ SFP1: 100M SFP1
	■ SFP2: 100M SFP2
	■ L/A: Link/Act
	■ SPD: Speed
	■ PWR: Power
Dimensions (W x D x H)	71 x 94 x 26 mm
Weight	200g
Power Requirements	AC 100-240V 50/60Hz 0.15A Max
Power Consumption / Dissipation	<3W
Network Cables	10/100BASE-T:
	Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.)
	EIA/TIA-568 100-ohm STP (100 meters, max.)
	100BASE-FX:
	50/125μm or 62.5/125μm multi-mode fiber optic cable, up to
	2 kilometers (varying on SFP module)
	9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module)
Standards Conformance
Standards Compliance	IEEE 802.3 10Base-T
	IEEE 802.3u 100Base-TX
	IEEE 802.3u 100Base-FX
	IEEE 802.3x Flow control
Regulation Compliance	CE, RoHS and FCC
Environment
Temperature	Operating: 0~50 degrees C
Temperature	Storage: -10~70 degrees C
Humidity	Operating: 5~95% (non-condensing)
Humidity	Storage: 5~95% (non-condensing)

Overview

E-link LNK-2100SFP Gigabit Media Converter Switch provides 1 RJ45 and 2 SFP ports to support conversion between 10/100Base-T and 100Base-X networks. With the two SFP ports, the converter switch provides high reliability and flexibility to extend the media transmission distance up to 2km, 20km, or longer depending on the SFP fiber optical transceivers. It allows the two types of segment to connect easily, efficiently and inexpensively.

Ordering information

Item	Description

LNK-2100-SFP	1x10/100BASE-T to 2x100BASE-FX SFP Media Converter with Built-in Power Supply, not including SFP modules

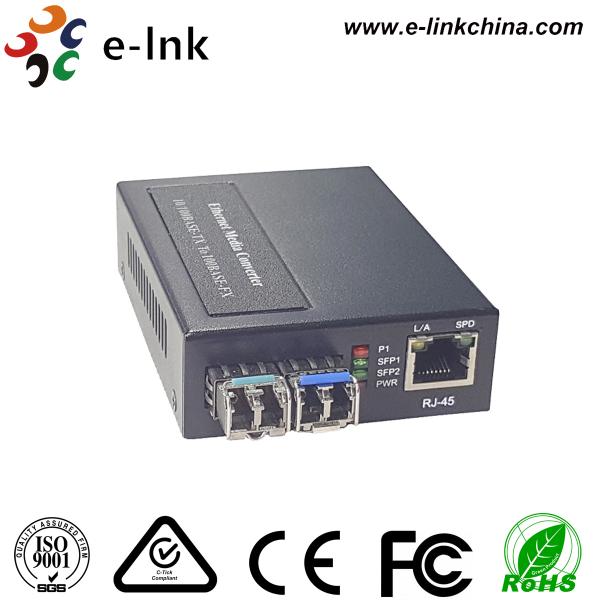

1x10/100BASE-T to 2x100BASE-X SFP Media Converter with Built-in Power Supply Images
