24 port Gigabit L2 managed switch
Product Advantages
► IEEE 802.3,IEEE 802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.3af standard
► Support upward port auto MDI/MDIX.
► Adopted storage forward switch system.
► Adopt three fans cooling design to guarantee the equipment stability；
► 24 port 10/100/1000Mbps port
► 4Mb Packet buffer memory
► Support IEEE 802.1x flow control；
► Support saving power function when port no connection
Technical Indexes
| Network Interface | 24port 10/100/1000M RJ45 port (Adaptive MDI/MDIX ) 4 Gigabit SFP port |
| Forwarding rate | Gigabit line speed forward |
| Network protocols and standards compliant | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-TX IEEE 802.3x Flow Control |
| Network protocol and standard | · network delay(100 to 100M bps):maximum 20 μs(using 64 byte packet) · network delay(100 Mbps ~ 100 Mbps ):maximum 10μs(using 64 byte packet) |
| LEDs Indicator | Power LINK/ACT |
| Power supply | Main board power supply:12VDC/1A |
| Dimensions | Size(LxWxH):440mm x 350mm x 44 mm Weight:5.5kg |
| Environment | Operating Temperature:0°~40°C Operating Humidity:10%~ 90%,(Non-condensing) |
| EMC | CE Class B FCC Part 15,Class B VCCI Class B C-Tick |
| Certificate | CE. FCC ROHS |
| Warranty | 1 year |
Application
Overview
LNK-M2024G is 24 port Gigabit managed switch, LNK-M2024G can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.
Ordering Information
| Item | Description |
|
| LNK-M2024G | Fiber to Copper Ethernet Switch: 10/100/1000Mbps port (24ports) + 1000Mbps SFP (the 25,26,27,28th), not including SFP Modules; 100-240V AC VAC |
|
|

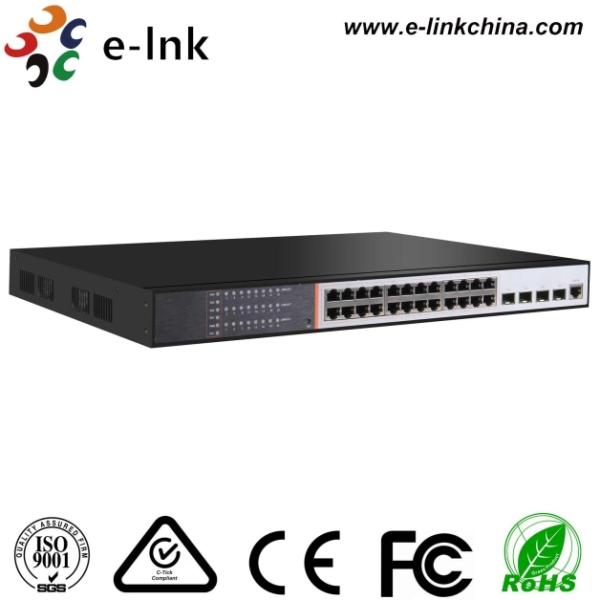

24 port Gigabit L2 managed switch Images
|
