Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch Advantages
► Support 8x10/100/1000Base-T 802.3at PoE + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch Overview
ETH-IMC2408MP Series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP and 10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| | IEEE802.3u 100BASE-TX/FX |
| | IEEE802.3ab 1000BASE-T |
| | IEEE802.3z 1000BASE-X |
| | IEEE802.3ae 10GBase-R |
| | IEEE802.3p QoS |
| | IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| | 148,800pps (100Mbps) |
| | 1,488,000pps (1000Mbps) |
| | 1,488,000,000pps (10000Mbps) |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| RS485: | 1 x RS485 (Optional) |
| Optical Port: | 4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
| USB-C: | 1 x USB-C (for Management) |
Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch ordering information
| Model | Description |
| ETH-IMC2408MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
|
|

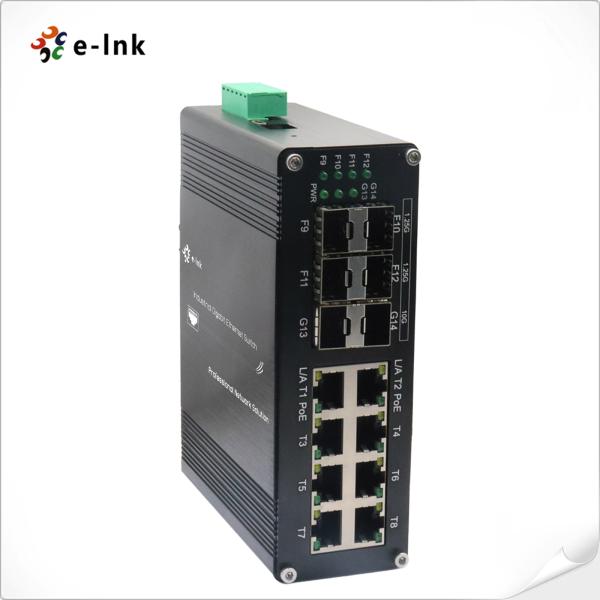

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch Images
|
