Industrial L2+ 8-Port 10/100/1000T + 8-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10/100/1000T + 8-Port 1000X SFP Managed Ethernet Switch Advantages
► Support 8x10/100/1000Base-T + 8x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
-40°C to 80°C (-40°F to 176°F) operating
Industrial L2+ 8-Port 10/100/1000T + 8-Port 1000X SFP Managed Ethernet Switch Overview
LNK-IMC808GM series is the L2+ managed 8-port 10/100/1000Base-T + 8-port 1000Base-X SFP hardened Ethernet switch. The switch has 8 TP ports and 8 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Industrial L2+ 8-Port 10/100/1000T + 8-Port 1000X SFP Managed Ethernet Switch Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| | IEEE802.3u 100BASE-TX/FX |
| | IEEE802.3ab 1000BASE-T |
| | IEEE802.3z 1000BASE-X |
| | IEEE802.3p QoS |
| | IEEE802.1d Spanning Tree |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| | 148,800pps (100Mbps) |
| | 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 64Gbps |
| Max Packet Length: | 16K Bytes Jumbo Frame |
| Address Table Size: | 16K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| Optical Port: | 8 x 1000Base-X SFP |
| USB-C: | 1 x USB-C (for Management) |
Industrial L2+ 8-Port 10/100/1000T + 8-Port 1000X SFP Managed Ethernet Switch ordering information
| Model | Description |
| LNK-IMC808GM | Industrial L2+ 8-Port 10/100/1000T + 8-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
|
|

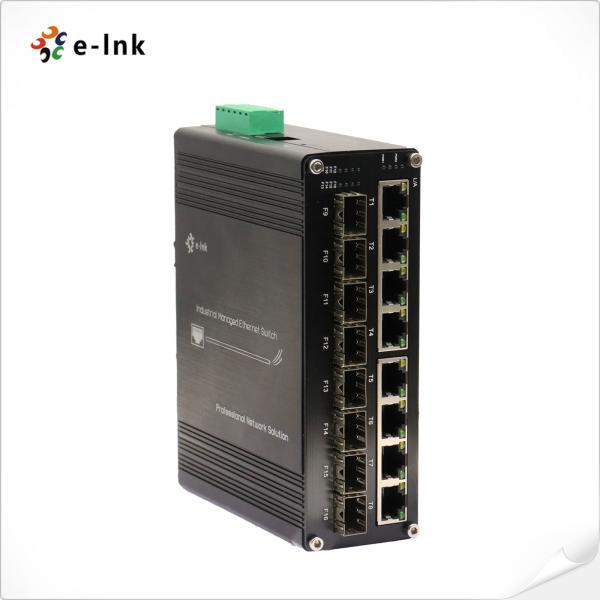

Industrial L2+ 8-Port 10/100/1000T + 8-Port 1000X SFP Managed Ethernet Switch Images
|
