Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch Advantages
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► Supports IEEE 802.3at PoE+ (30W per port)
► Supports 802.3x Flow Control
► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
► Support IEEE 802.3D/W/S standard STP/RSTP protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch Overview

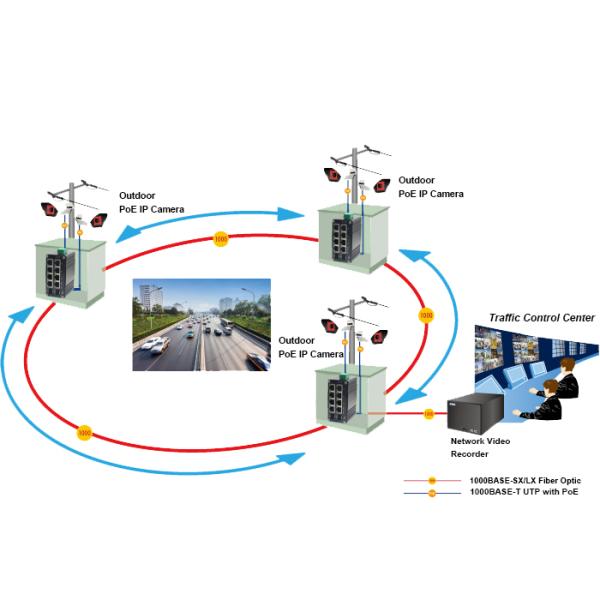

LNK-IMC208SGP-SFP, managed industrial network switch, with 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| | IEEE802.3u 100BASE-TX/FX |
| | IEEE802.3ab 1000BASE-T |
| | IEEE802.3z 1000BASE-X |
| | IEEE 802.3az Energy Efficient Ethernet (EEE) |
| | IEEE802.3af Power over Ethernet |
| | IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| | 148,800pps (100Mbps) |
| | 1,488,000pps (1000Mbps) |
| Backplane bandwidth | 20Gbps |
| Packet Buffer Memory: | 9216 bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100/1000Base-X SFP |
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch ordering information
| Model | Description |
| LNK-IMC208SGP-SFP | Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
|
|

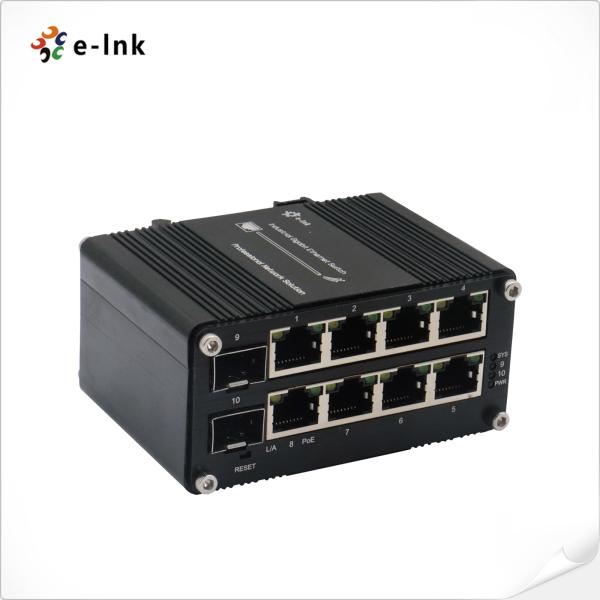

Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch Images
|
