Unmanaged 5 port 10/100/1000Mbps Ethernet Switch
Product Advantages
► Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
► Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
► Auto-MDI/MDIX eliminates the need for crossover cables
► Supports MAC address auto-learning and auto-aging
► Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
► Fanless design ensures quiet operation
Technical Indexes
| Parameter | Specification |
| Chipset | MTK7530U |
| Standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-Tx: UTP category 5, 5e cable (maximum 100m) |
| Switching Capacity | 10G |
| MAC | 4K Automatically learning, automatically Update |
| Number of Ports | 5x 10/100/1000Mbps Auto-Negotiation ports |
| LED indicators | 10/100/1000M Link/Act, Other Power |
| Bit error rate | <1/1000000000 |
|  Transfer Method
| Store-and-Forward |
| MTBF | 100000 hours |
| Power | DC5V/1A |
| Power consumption | 1.5W |
| Working temperature | -10~60℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 22mm (H)×68mm(W)×88mm (D) |
Overview
E-link LNK-305 series is 5 port 10/100/1000Mbps unmanaged switch, offer 5 port 10/100/1000Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store-and-forward technology, combine with dynamic memory allocation, ensure allocate to each port effectively. Its wires peed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
Ordering Information
| Item | Description |
| LNK-305 | Unmanaged Ethernet Switch: 5x10/100/1000M RJ45 Ports, DC5V 1A External Power Adapter |
|
|

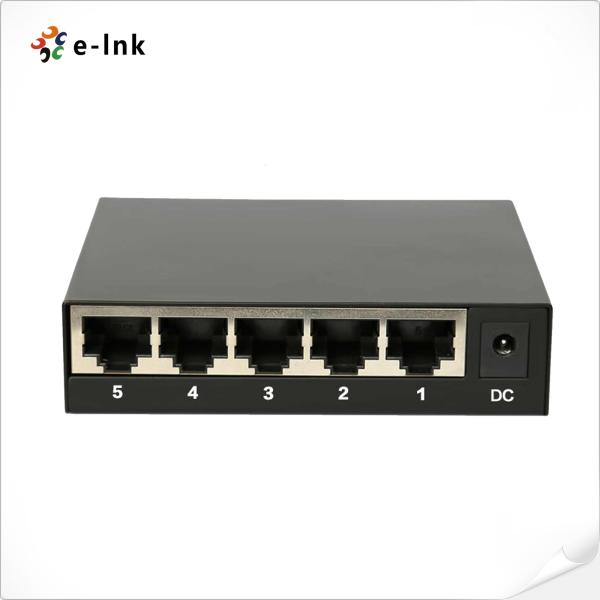

Unmanaged 5 port 10/100/1000Mbps Ethernet Switch Images
|
