4-port 10/100/1000BASE-T + 1-port 1000BASE-FX SFP Ethernet Switch

Name: 4port 101001000BASET 1port 1000BASEFX SFP Ethernet Switch
Brand: E-link
Price: 1 USD

Wholesale 4-port 10/100/1000BASE-T + 1-port 1000BASE-FX SFP Ethernet Switch from china suppliers

Brand Name : E-link

Model Number : LNK-1400G

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Operating Temperature : 5%~90%

Power consume : <5W

Maintaining humidity : 5% ~ 90% non-condensing

Power supply : DC5V 1A (external)

Contact Now

4-port 10/100/1000BASE-T + 1-port 1000BASE-FX SFP Ethernet Switch

Product Advantages

· Switch Ethernet signals among 4*10/100/1000M UTP ports (T) and 1000M SFP Optical Fiber Interfaces (X)

· Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

· 1000M Fiber port supports 1000M and Full Duplex mode.

· Supports flow control and broadcast storm protection.

· Supports VLAN and QoS.

· Supports max 10K bytes frame.

· Low power consume (4W), low heat, and good reliability.

Technical Indexes

Parameter	Specifications
Access mode	410/100/1000Mbps+1SFP
Standard	IEEE 802.3/ 802.3u Ethernet, IEEE802.3ab 1000BaseT, IEEE802.3z 1000BaseX, IEEE 802.1d Spanning Tree, IEEE 802.1q VLAN TAG, IEEE 802.1p Qos ,10/100/1000Base-T and 1000Base-FX
Wavelength	SFP(850nm/1310nm/1550nm)
Transmission distance	Fiber Optic: Multimode Fiber: 50/125, 62.5/125μm (2km) Single mode Fiber: 8/125,8.7/125,9/125μm(the max distance up to 10~120 km) Category-5 twisted pairs: 100m
Port	4RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 1SFP socket
Conversion means	Media conversion, store-and-forward
Flow control	Full duplex: flow control; half duplex: back pressure
Error rate	<10^-9
MTBF	100,000 hours
MAC address table	4K
Power supply	DC5V 1A (external)
Power consumption	<5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Overview

LNK-1400G Series 4 port Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 1000M SFP sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.

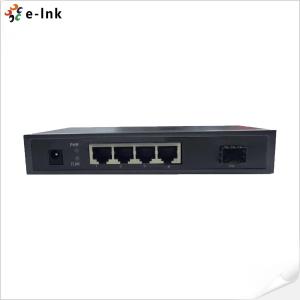

4-port 10/100/1000BASE-T + 1-port 1000BASE-FX SFP Ethernet Switch Images
