Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Product Advantages
► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► Up to 8 ports of IEEE 802.3af/at devices powered
► Up to 240-watt PoE budget
► 48~57V DC redundant power with reverse polarity protection
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
The LNK-IMC010GP is the mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch and is specially designed to be installed in a narrow environment. It provides up to 240-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. With eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.
Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer: | 2Mbits |
| Packet Length: | 9216bytes |
| MAC Address Table: | 4K entries |
| Switch Fabric: | 20Gbps/non-blocking |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
| Interface |
| Connector: | 10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function (Port 1 to 8) |
| PoE (Power over Ethernet) |
| Standard: | IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Max. Number of Class 4 PDs | 8 |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 100,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC Redundant power with polarity reverses protection function |
| Power Consumption: | <250W (Non-PoE<10W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 88 x 46mm |
| Weight: | 400g |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| LED Indicators: |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
| PoE | Max 30W per port |
| Regulatory Approvals |
| EMC | CE (EN55032, EN55035) |
| EMI | FCC Part 15 Subpart B |
| EMS | EN61000-4-2 (ESD) EN61000-4-3 (RS) |
| EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11 |
| Safety | CE (EN60950-1) |
| Surge Protection | 8KV for PoE, RJ-45 and SFP ports |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |

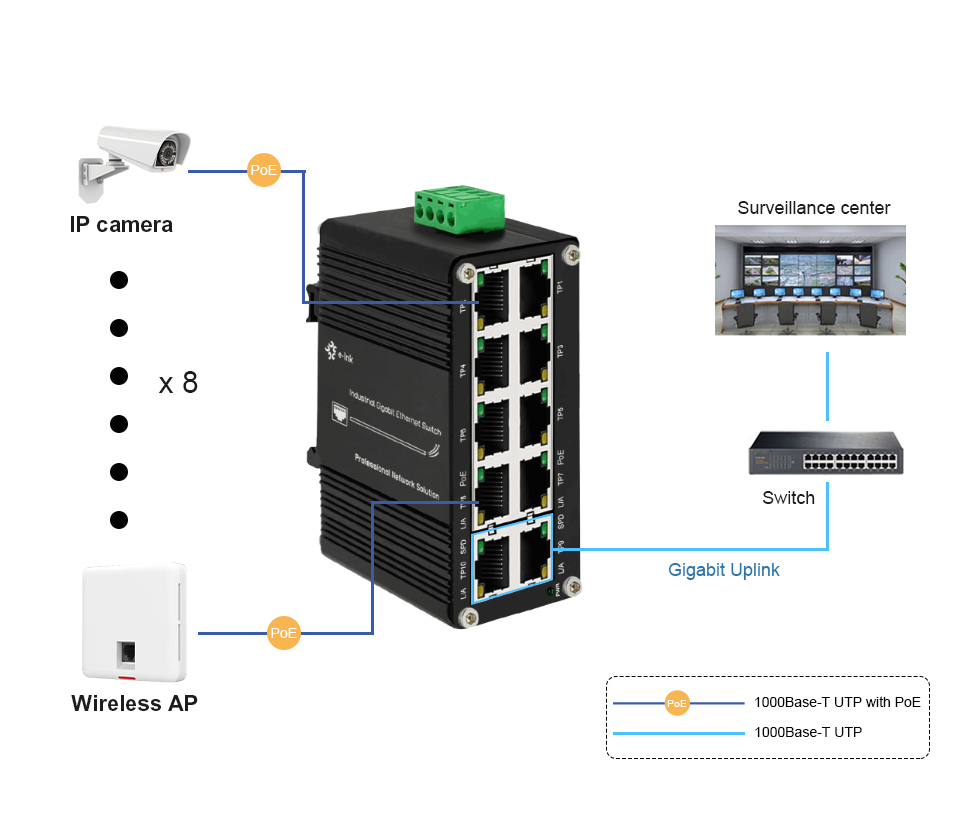

Application
