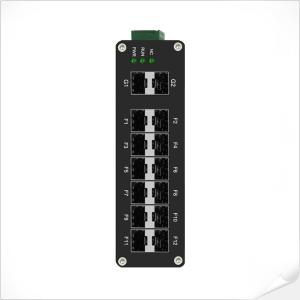

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch

Ethernet

Forward & Filtering Rate:

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

10K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

Interface

Optical Port:

14 x 1000Base-X SFP

USB-C:

1 x USB-C (for Management)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power Status

Fiber:

100/1000X SFP Port: F1~F12

Fiber:

Gigabit SFP Port: G1~G2

Dimensions (WxDxH):

149 x 114 x 50 mm

Weight:

0.55Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

Software Features

Redundancy Protocols

Support STP/RSTP/MSTP/ERPSv2, Link Aggregation

Multicast Support

Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q

VLAN

Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,

Time Management

SNTP

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT

Alarm Management

Support 1 way relay alarm output, RMON, TRAP
