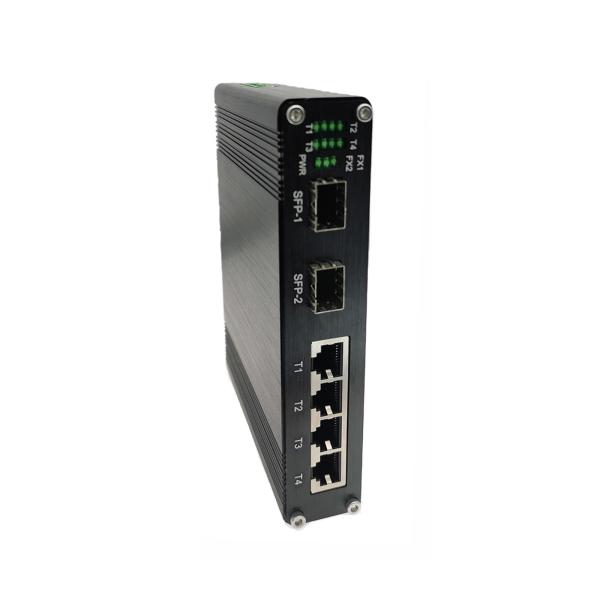

Industrial 4-port 10/100/1000Base-T + 2-port 1000BASE-X Ethernet Switch

Brand Name : E-link

Model Number : LNK-IMC204G

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Weight : 0.5Kg

Dimensions (WxDxH) : 150 x 115 x 30 mm

Mounting Options : DIN-Rail / Wall-mount

Power consumption : 5W Max.

Contact Now

Industrial 4-port 10/100/1000Base-T + 2-port 1000BASE-X Ethernet Switch

Product Advantages

► 4 10/100/1000Base-TX + 2 1000Base-FX

► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Redundant Power Inputs

► Supports Wall-mount and DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

LNK-IMC204G is a 4 ports 10/100/1000Base-TX + 2 port 1000Base-FX Hardened Ethernet switch. The Switch has 4 TP ports and 2 fiber ports. TP (RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Technical Indexes

Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1M bits

Processing Type:

Store-and-Forward

Address Table Size:

2048 MAC Addresses

Interface

Connector:

4 x RJ45

Optical Port:

2 x 1000Base-FX (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~58VDC , Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

Ethernet(Per Port):

Link/Activity

Fiber Port:

FX1, FX2

Dimensions (WxDxH):

150 x 115 x 30 mm

Weight:

0.5Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Application

Industrial 4-port 10/100/1000Base-T + 2-port 1000BASE-X Ethernet Switch

Ordering Information

Model

Description

LNK-IMC204G

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC204G-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC204GS-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC204GF-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 2-port 1000BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC204G-SFP

Industrial 4-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
