Fiber HD SDI To Ethernet Converter 16-Channels Video Fiber Optic Transceiver

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-SDI-16V

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pair

Price : $25-369

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pairs/month

Delivery Time : 5-12 working days

Packaging Details : SDI Fiber Converter Standard Export Package

Keyword : HD-SDI to fiber converter

Input number : 16 channels

Data format : Reverse RS485

Data rate : DC to 100 Kb/s

Transmission distance : 550m-120Km

Operating temperature : -40℃～＋85℃

Contact Now

SDI Fiber Converter 16-Channels HD-SDI Video Fiber Optic Extender
HD-SDI Fiber Converter Advantages

► 16 channel HD-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems and support Reverse RS-485 data protocols

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

Technical Indexes

Serial TV, BNC Input

Input number:16

Equilibrium: 0-150m @1.485Gb/s

Connector: FC/PC(SC/PC optional)

Optics

Channel: 1

Type: single-mode (multimode optional)

Wavelength: 1310nm /1550nm

Transmission distance (550m-120Km)

Data

Channel: 1

Data format: Reverse RS-485 (full/half duplex) and support NRZ, RZI and Manchester

Data rate: DC to 100 Kb/s

Connector: wire connecting terminal

Overview

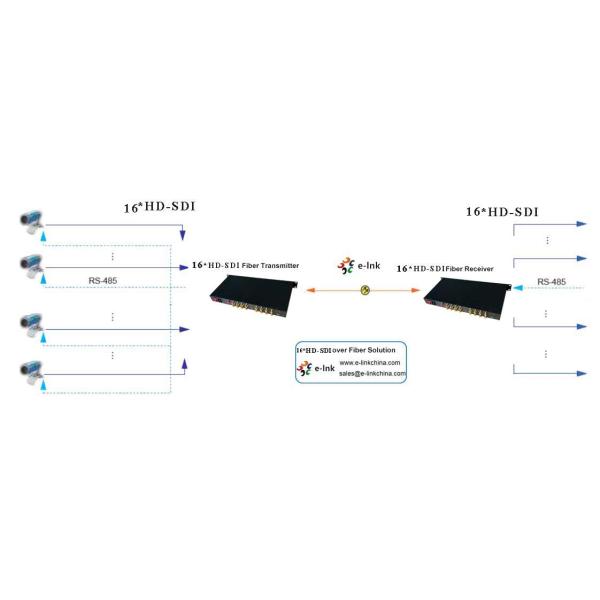

LNK-SDI-16V Series supports 16-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. E-link HD-SDI Fiber Converters can simultaneously transmit 16-Ch HD-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level supports Reverse RS-485 data communication format.

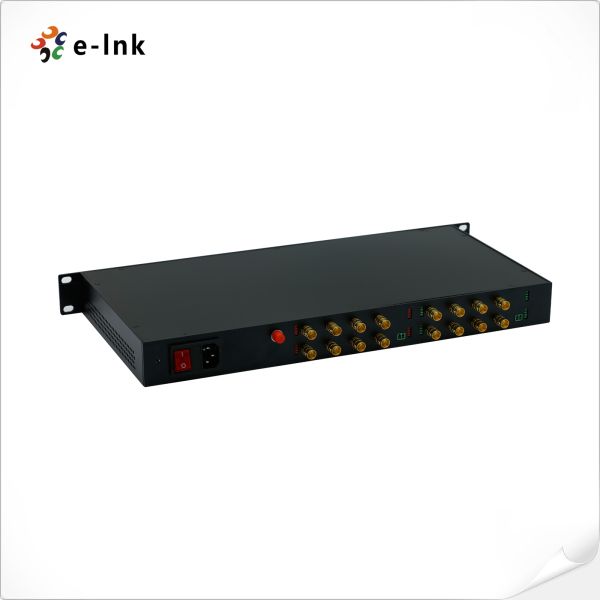

Fiber HD SDI To Ethernet Converter 16-Channels Video Fiber Optic Transceiver
Fiber HD SDI To Ethernet Converter 16-Channels Video Fiber Optic Transceiver
Ordering Information

Model

Description

LNK-SDI-16V

16-Ch SDI Video, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-SDI-16V1R

16-Ch SDI Video + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs
